MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

Product Specification
Type	Semi trailer
Product Name	Car Carrier Semi-trailer
Function	Transport car
Overall dimension	13000x2500x1600mm
Loading weight	40 tons
Main Beam	Up plate : 14MM Down Plate 12 MM Middle Plate 10 MM
Side Beam	22mm channel steel
Traction pin	JOST Brand, optional 2” or 3.5”
KING Pin	50MM or 90 MM
Axle	13T/16T ton for each axle ORENO/ FUWA/BPW/Other
Suspension type	rigid suspension,10 pcs leaf-spring American suspension (German/Air suspension optional)
Leaf spring	10/10/10 90mm13mm10pcs
Rim	8
Tire	7.50-20 (Other size optional)
Tire quantity	12 units
Platform thickness	3mm
Valve	WABCO VALVE
Brake Chamber	6 big chamber brake system
Tool box	1 unit 1m0.5m0.5m
Spare wheel carrier	2 units
Side marker lamp	LED type
Voltage	24V
Receptacle	7ways (7 wire harness)

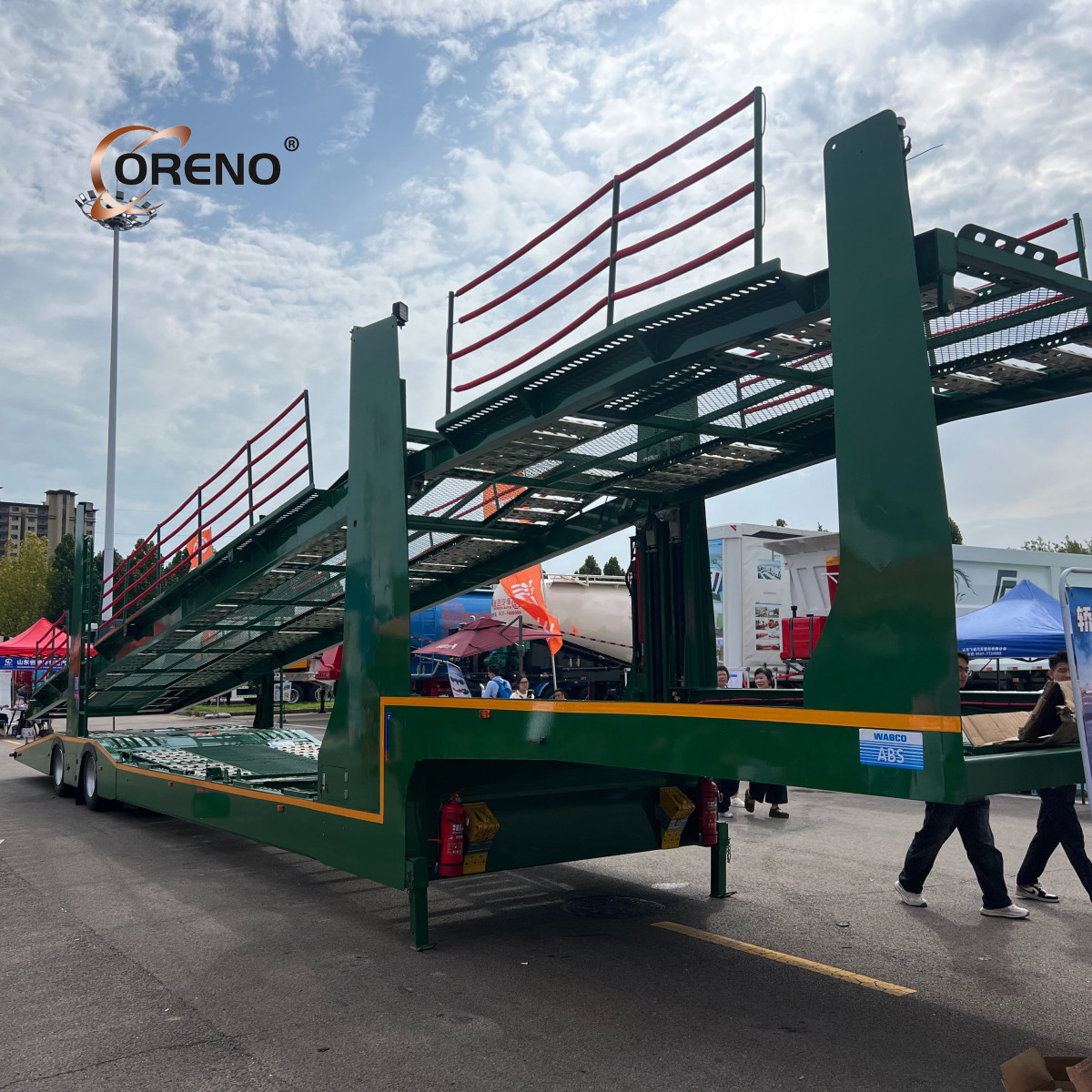

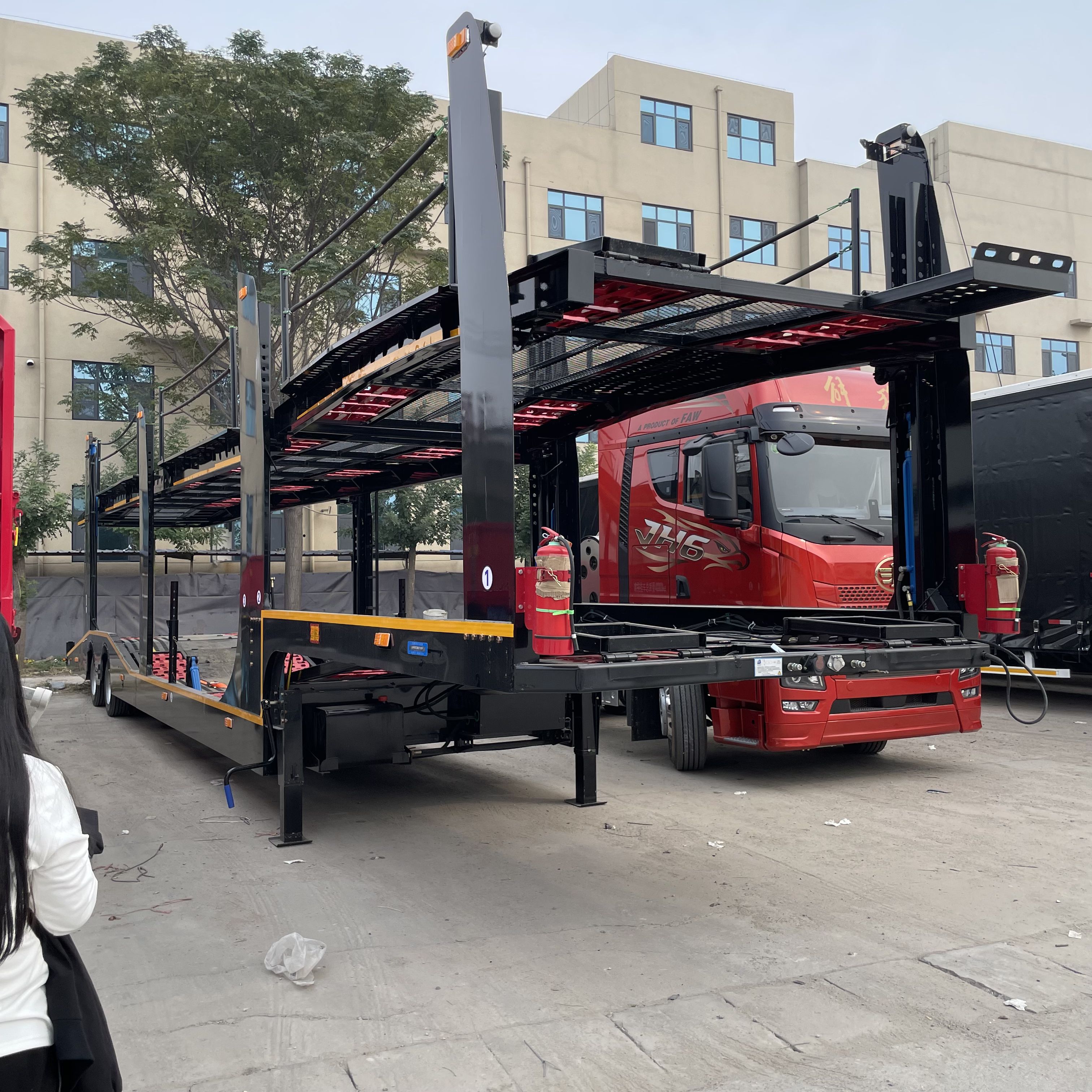

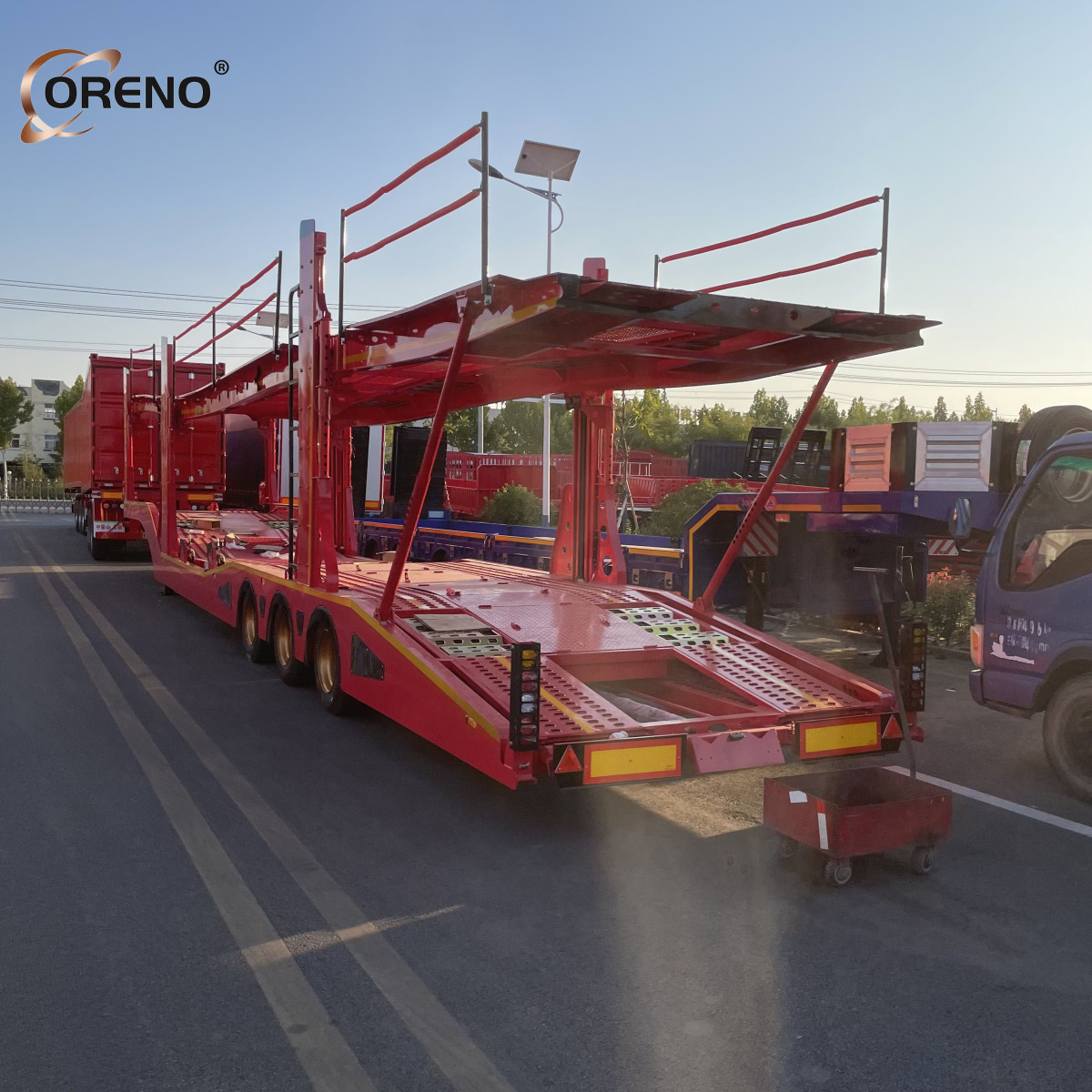

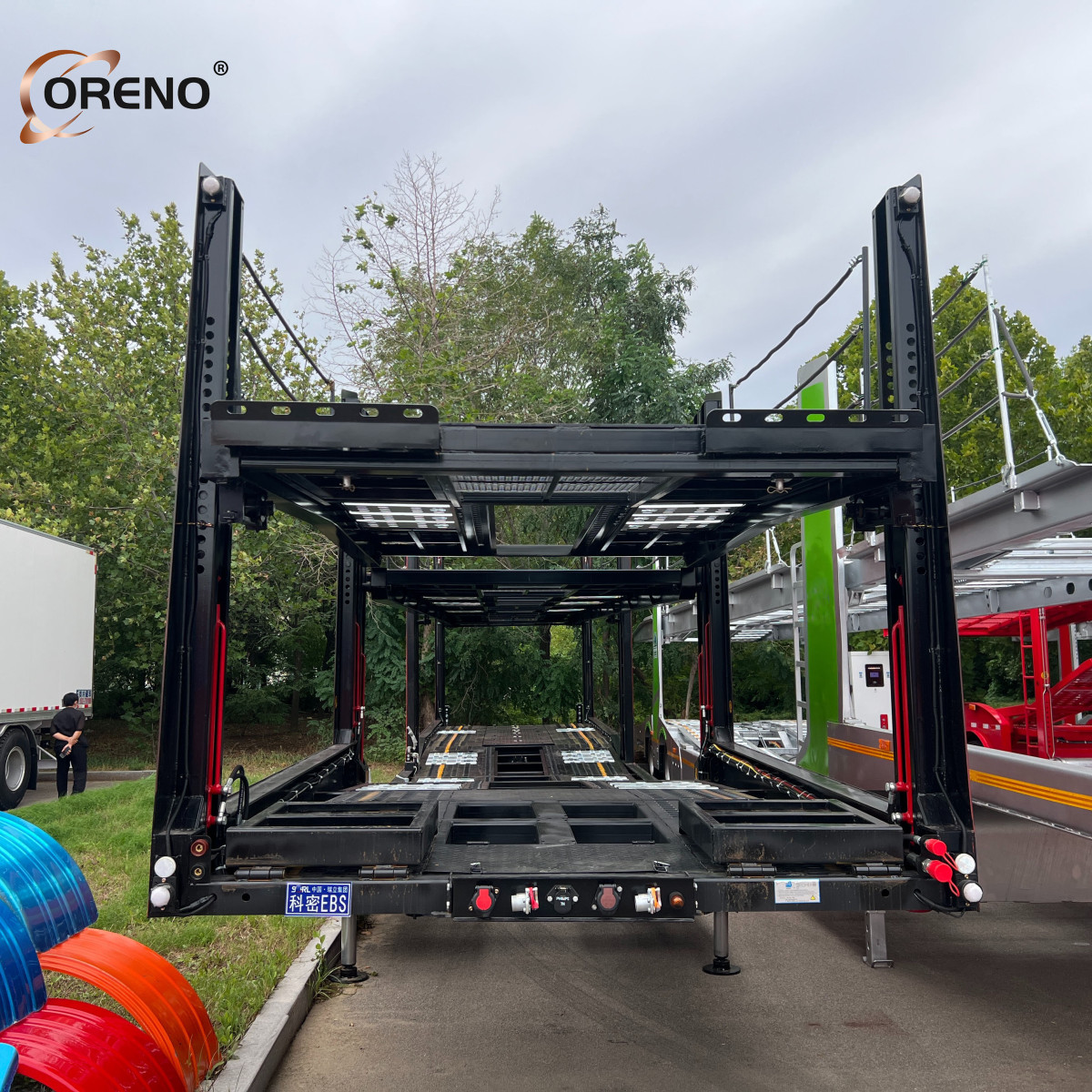

Product Display

1. The body is made of rods and cabinet frames, which is light in structure and light in weight.

Most of them are upper and lower two-layer loading platforms. The platforms use hydraulic cylinders to open and wire rope pulley structures. They have the advantages of smooth lifting and multiple positioning at different heights;

2. Light structure:

The whole vehicle adopts a truss structure, and the frame carries the entire load. It does not have the
longitudinal beam structure of a semi-trailer. It is light in weight, about 30% lighter than similar vehicles;

3. Safe and convenient operation:

All loading and unloading platform lifting controls are reliable and can be clearly observed and operated accurately;

4. Suspension system:

It adopts a unique leaf spring under-mounted suspension system with variable cross-section leaf springs to ensure good driving smoothness.
