MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.


Key attributes

Type
Semi-Trailer
Max Payload
30T/40T/50T/60T/80T/100T
Brand Name
ORENO
Place of Origin
Shandong, China
Use
Truck Trailer
Material
Steel
Size
700cm*250cm*150cm
Product name
Flatbed Semi Trailer
Color
Customers Optional
Type
Semi-Trailer
Function
Transport 20ft 40ft Container
Usage
Heavy Equipment Machinery Transport
Application
20'/40'/45' Container Loading
Brand
oreno
Axle
13 Ton American axle
Leaf Spring
90mm(W)*13mm(T)*10 Layer
Landing Gear
28T

Packaging and delivery

Selling Units
Single item
Single package size
XX cm

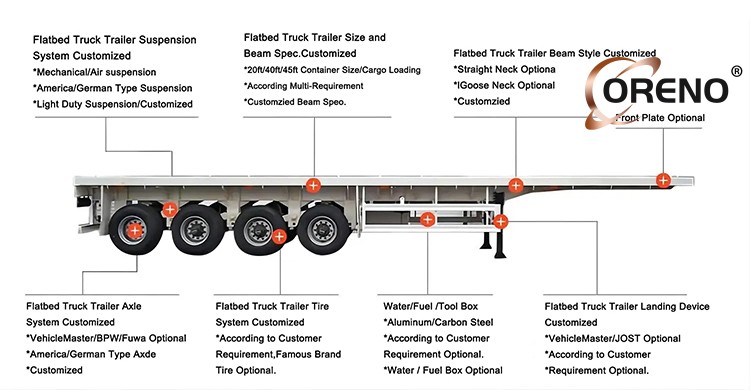

图片_1

Flatbed Semi Trailer Specification
20FT FLATBED SEMI TRAILER
40FT FLATBED SEMI TRAILER
45FT FLATBED SEMI TRAILER
Brand: ORENO
Brand: ORENO
Brand: ORENO
2 Axles/3 Axles
2 Axles/3 Axles /4 Axles
3 Axles /4 Axles
20ft container or cargo loading
1*40ft/2*20ft Container or cargo loading
1*40ft/1*45ft container or cargo loading
Loading Capacity: 20 - 60 Tons
Loading Capacity: 30 - 80 Tons
Loading Capacity: 30 - 80 Tons
Gooseneck Type: Yes
Gooseneck Type: Yes
Gooseneck Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Tandem Type: Yes
Main Beam
Material: Q345/T700
Material: Q345/T700
Material: Q345/T700
Upper Plate Thickness: 12mm
Upper Plate Thickness: 16mm
Upper Plate Thickness: 16mm
Middle Plate Thickness: 6mm
Middle Plate Thickness: 10mm
Middle Plate Thickness: 10mm
Lower Plate Thickness: 14mm
Lower Plate Thickness: 18mm
Lower Plate Thickness: 18mm
Height: 500mm
Height: 500mm
Height: 500mm
Platform Thickness: 2.5mm
Platform Thickness: 3mm
Platform Thickness: 3mm
Product Dimension
L 7000mm*W 2500mm*H 1570mm
L 12400mm*W 2500mm*H 1570mm
L 13950mm*W 2500mm*H 1600mm
Axles
2/3 Axles *13/16 Ton
VEHICLE ORENO/FUWA/BPW/Other
2/3 Axles *13/16 Ton
VEHICLE ORENO/FUWA/BPW/Other
2/3 Axles *13/16 Ton
VEHICLE ORENO/FUWA/BPW/Other
Tire
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
12R22.5 (8/12 Pieces)
Linglong/Triangle/Double-Coin/Bridgestone/
Other Brand
Rim
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
9.00*22.5 (8/12 Pieces) Steel/Aluminum
Leaf Spring
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
90mm*13mm*10/90mm*16mm*10Pcs
King Pin
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
50#(2")/90#(3.5") JOST/Other Brand
Landing Gear
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
28 Ton Two Speed,JOST/Other Brand
Twist Lock
4 Sets
12 Sets
12 Sets
Vehicle Painting
Electrophoresis painting
Electrophoresis painting
Electrophoresis painting
