MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

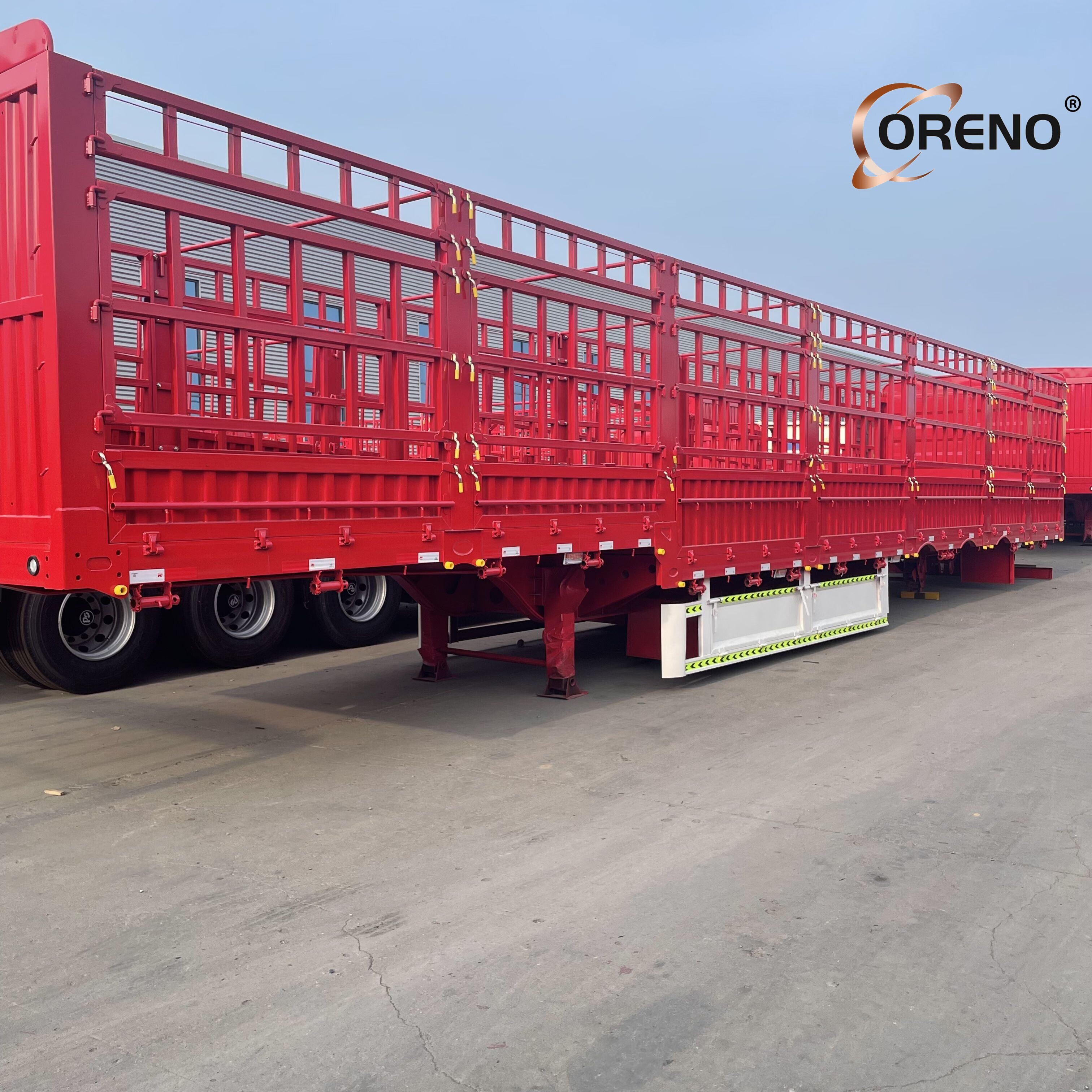

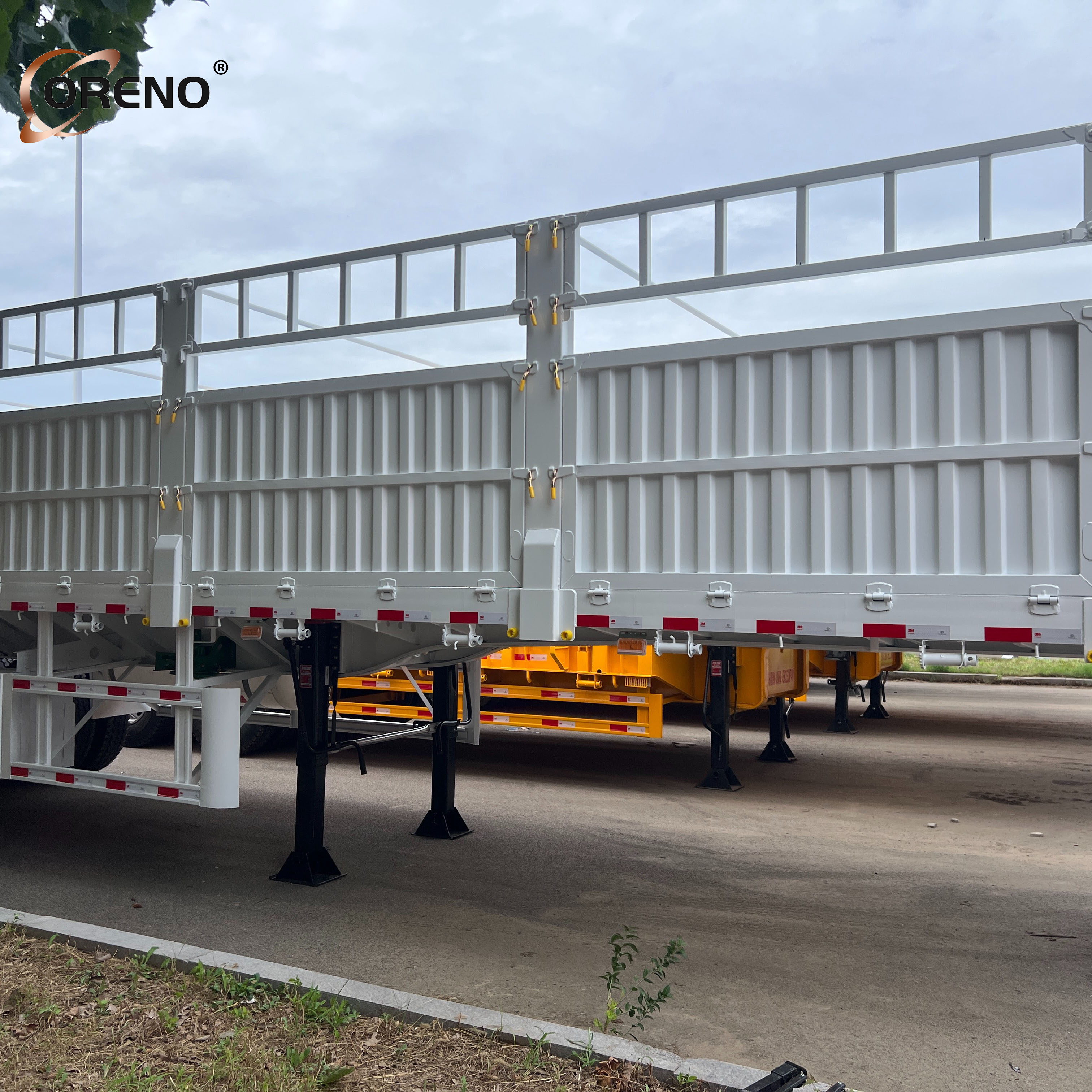

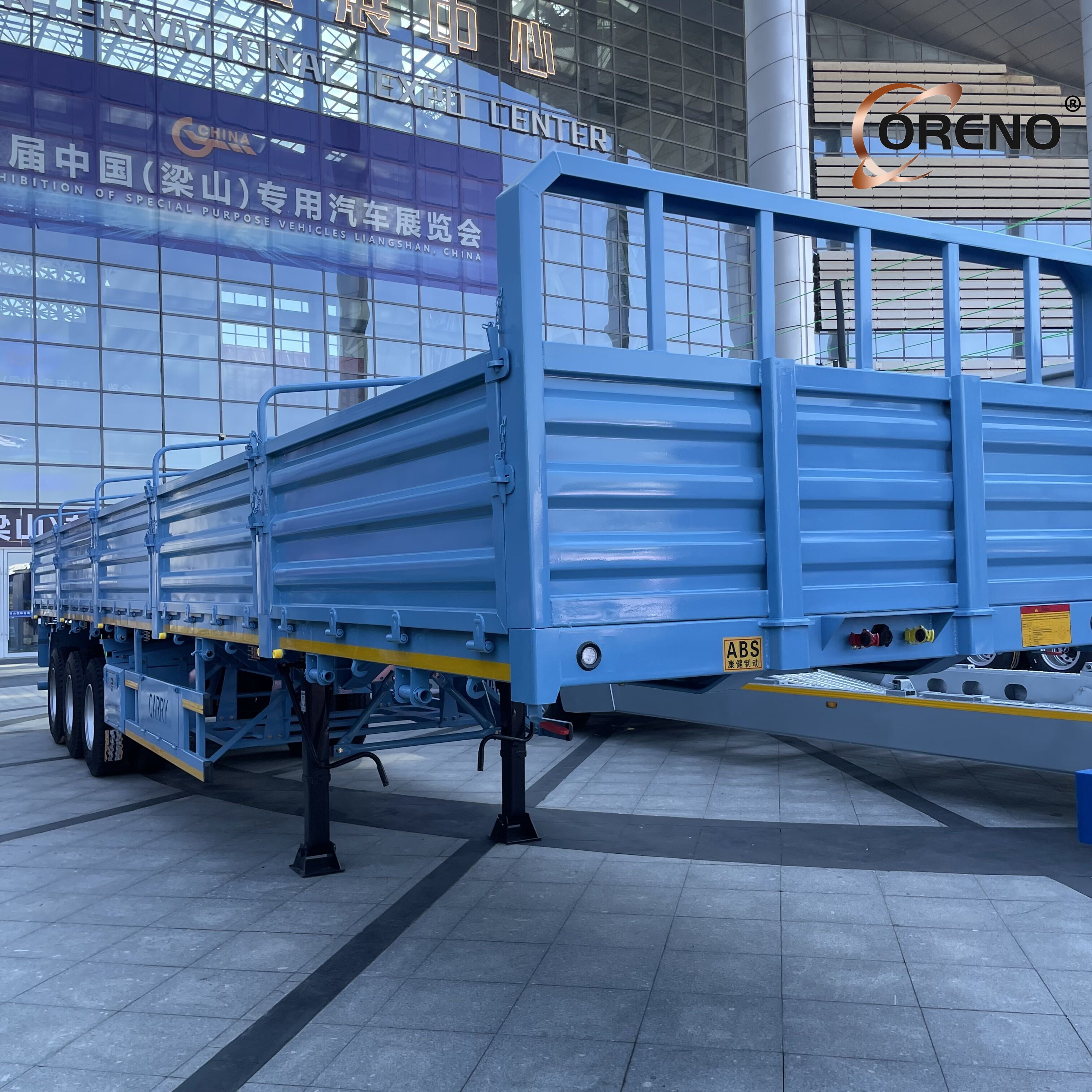

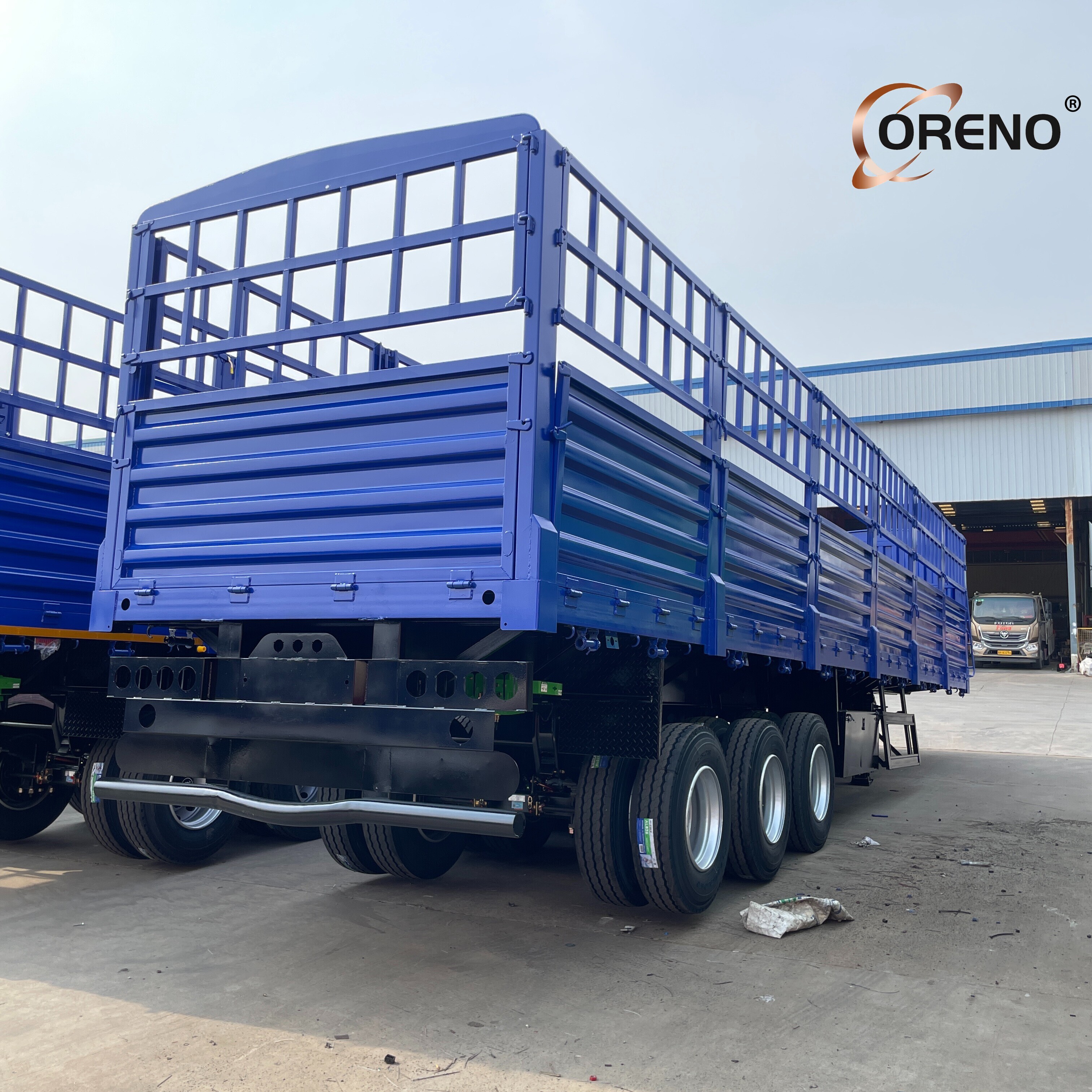

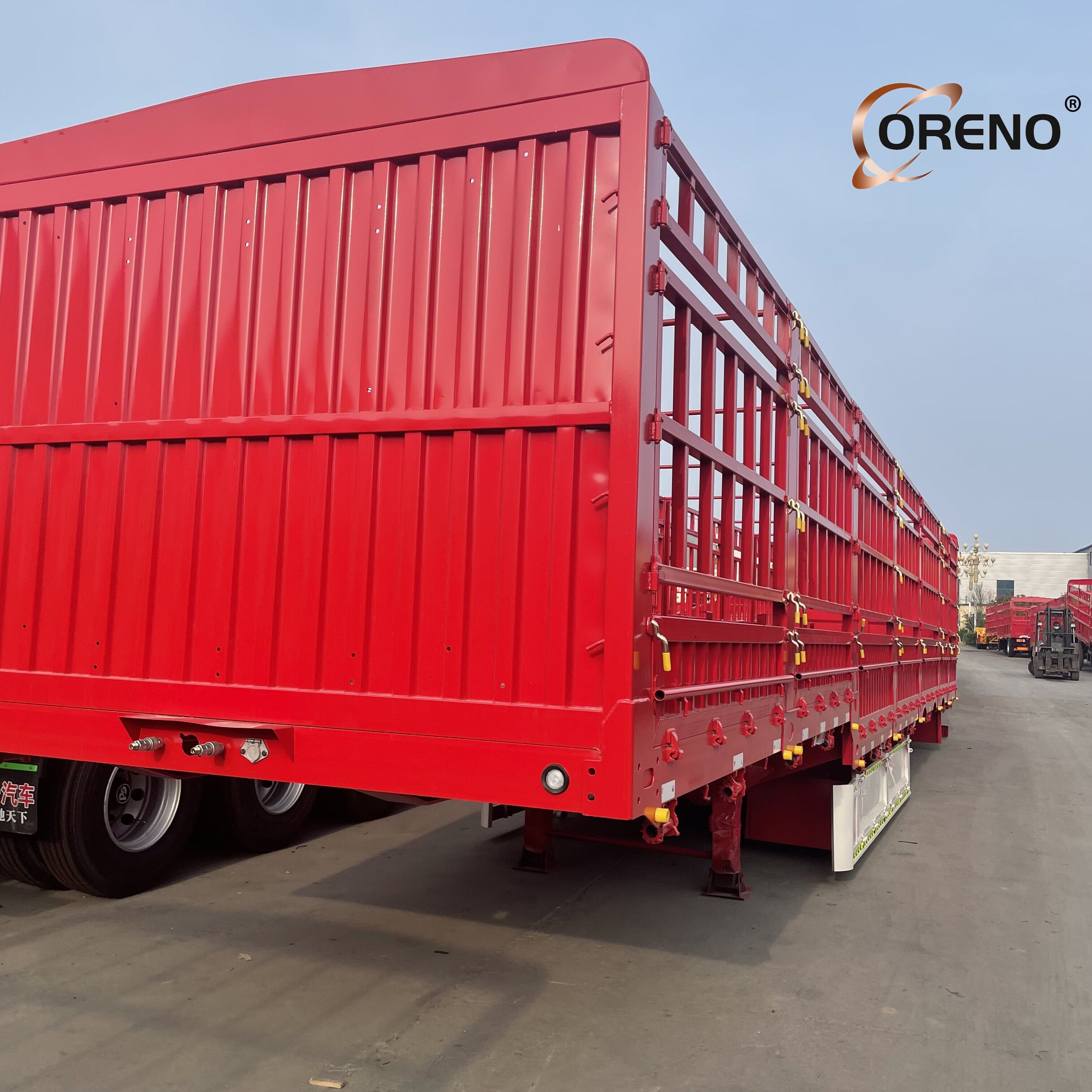

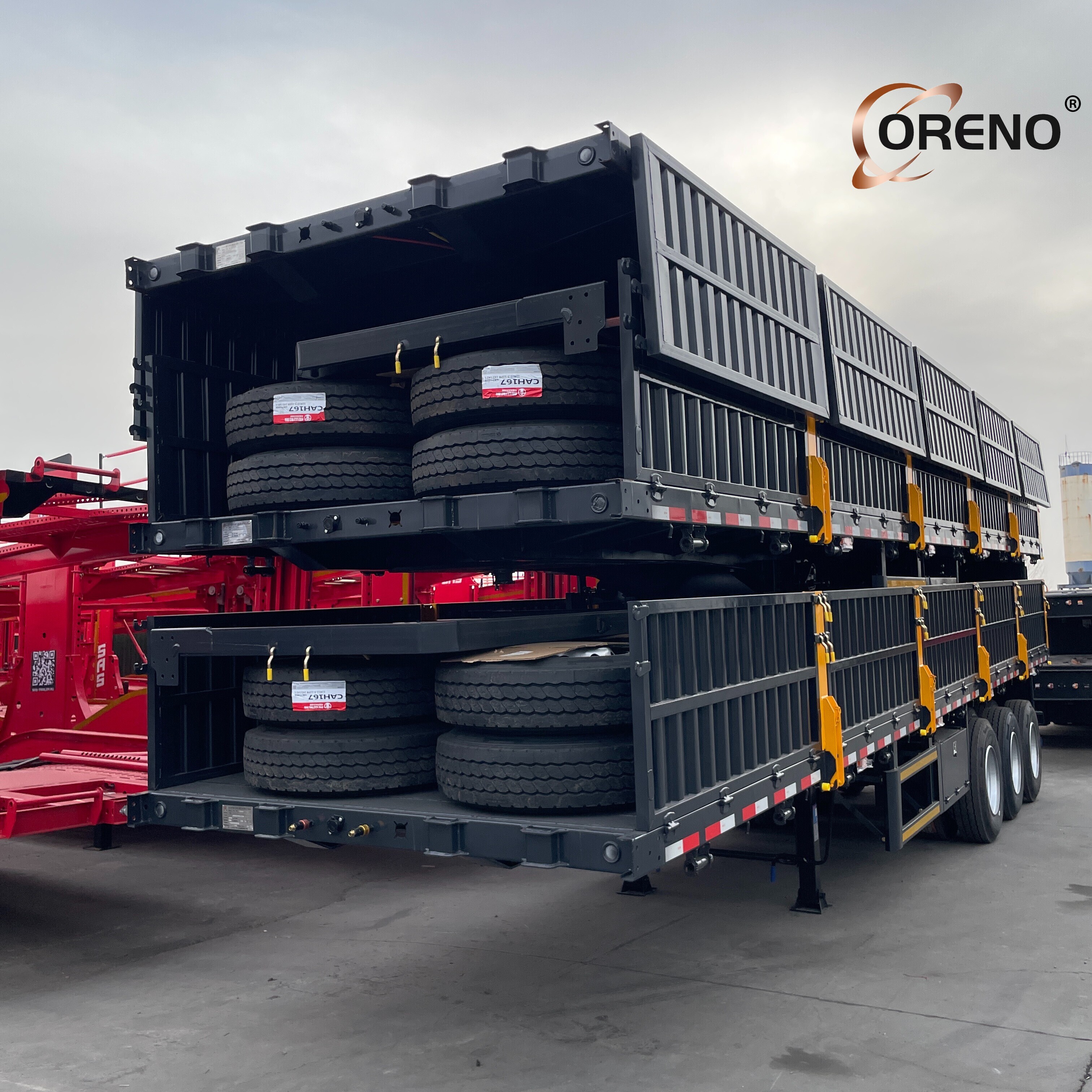

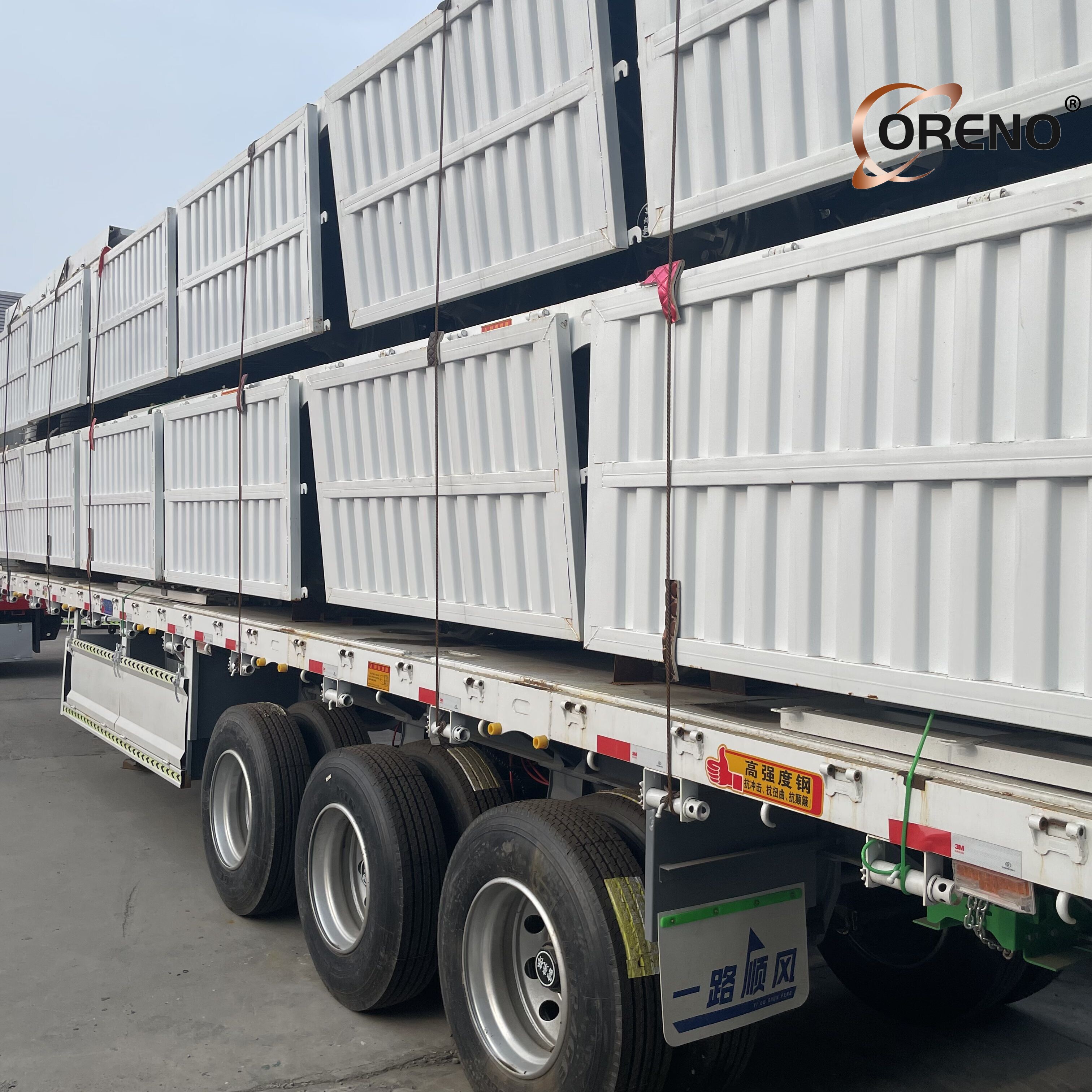

Fence semi trailer is based on flatbed semi trailer design and built with side walls and container twist locks, which can transport not only containers, but also bulk cargo.

Product Specification
Type	Semitrailer
Product Name	Multi-function Cargo Semitrailer
Cargo Body	Body Dimension	1225023501800mm
	External Dimension	1250025003600mm
	Baseplate	Corrugated Steel
	Container Lock	Optional
	Gooseneck	Optional
Tare Weight	7200kg
Payload	40t
Running System	Axles	ORENO, FUWA , BPW, HUAJIN brand,13t/16t/20t Good quality axles
	Suspension	Tri-axle 10-pcs leaf spring suspension with equalizer beam (we can choose the Air suspension depend on customer requirement)
	Tires	Linglong, Double Coin, Triangle brand 11.00R20/8.25R20/12.00R22.5, 12unit
Ladder	Manually operated or Hydraulic type
Braking System	Dual lines pneumatic brake system, WABCO Emergency Relay Valve; KORMEE ABS braking system
Frame	Main Beam	700 high strength steel, Q345B steel, Height 500, upper 8mm, lower 10mm, Mid web 6mm
Frame	Cross Beam	Mild Alloy Q235

The size, color and logo can be customized. If you need more details, please contact me. We will supply the best service and price.
