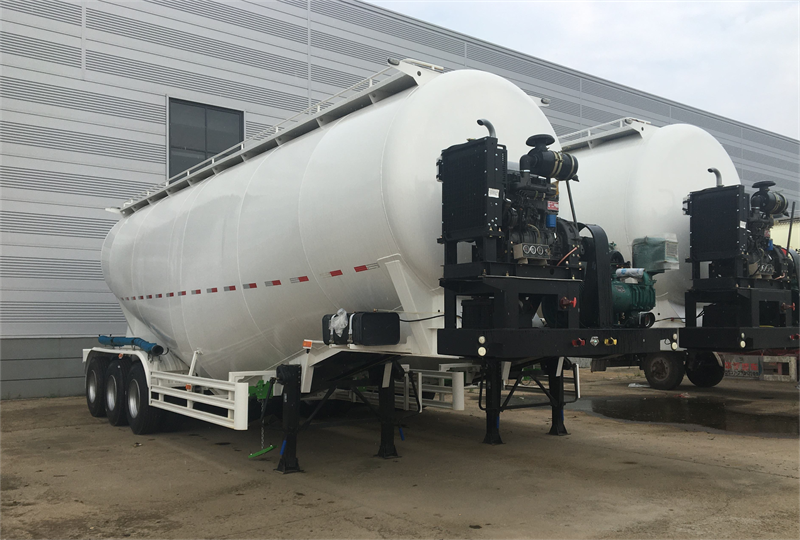

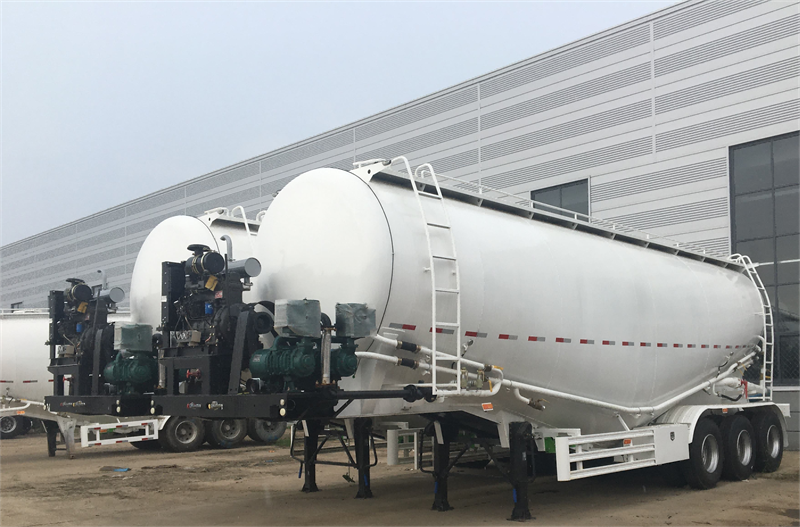

Cement Trailer
  • ORENO
  • Shandong, China (Mainland)
  • 20-30days
  • 300 sets/month
Email
Message

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.


Specifications of Tanker Body
Dimension12000mm*2490mm*3990mm(   Exact size depends on the final design)
Tare weight kgAbout   11800KGS-13000KGS
Tank capacity30cbm-60cbm(Volume   optional)
ShapeOptional(v   or w shape)
CompartmentsOne   or two compartment
Tanker Body Material5mm   or 6mm/Q235 carbon steel
End Plate5mm   or 6mm/Q235 carbon steel
Rim8.00-20/8.5-20/8.8-20/9.0-22.5   China Brand
Tire12R22.5/11R22.5/13R22.5/11.00R20/12.00R20(   brand can be Optional)
EngineWeichai   4105 Engine
Manhole Cover500mm   carbon steel or aluminum alloy manhole
Bottom Valve3''/   4” disc valve
Discharging ValveDiameter   is 3 or 4 inch
Discharging Pipe4”   rubber hose, 2 pcs, 6m/each
Air compressor10   m3,12m3
Diesel EngineWeichai   Huafeng, Tianhe 4102/4105
Main BeamWelding   design or Special design, connected by bolts and nuts.
Material:Q345 carbon steel
Height 500mm, Upper Thickness 14~18mm,
Middle Thickness 8~12mm, Down Thickness 16~20mm
Axle2   or 3 axles, ORENO/BPW/FUWA brand(Optional)
Landing GearJOST(D200T)or   China brand 28T
Brake SystemWABCO   Valve with big chamber
King PinJOST   2.00 or 3.5 inch bolt-in king pin
SuspensionMechanical   suspension or Air suspension
Leaf Spring90(W)mm×13(Thickness)mm×10(Layer)   or 100mm×12mm×12
Rear ladderDismountable
LightsTurning   Light, Side Marker Light, Tail Light
Voltage24V
Receptacle7   ways (7 wire harness)
PaintingComplete   Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats   of final paint
ABSOptional
AccessoriesOne   standard tool box
