MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

Product Specification
Type	Semi trailer

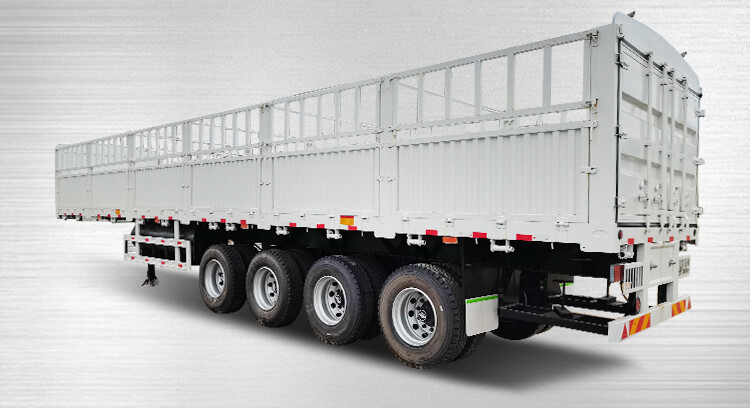

Product Name	3 Axles Multi-function Cargo Semitrailer
Cargo Body	Body Dimension	12500/1300025002800/3800 (mm)

	Baseplate	Corrugated Steel
	Container Lock	Optional
	Gooseneck	Optional
Tare Weight	7200kg
Payload	30T-80T
Running System	Axles	3*13T/16Ton ORENO/FUWA/BPW/Other

	Tires	12R22.5 / 11.00R20 - 8/12pcs (Other size optional)
	Suspension	American suspension(German/Air suspension optional)
Ladder	Manually operated or Hydraulic type
Braking System	Wabco re 6 relay valve;T30/30+T30 spring brake chamber,two units of 45L air tanks
Frame	Main Beam	Height: 500mm, upper plate is 12mm, middle plate is 6mm, down plate is 14mm ; Material is Q345B Steel. (optional T700)
	Side Beam	16mm channel steel(Meterial is Q235B steel,optional Q345/T700)

1. Capable of rough road condition:

international standard heavy duty chassis and running system applied to cope with rough road condition;

2. Steel structure:

high tensile steel material and advanced design to achieve lower weight with high carrying capacity, reduce operation cost;

3. Light design:

Lamp assembly uses advanced LED light, top quality PC and cast wire harness in dual circuit design.

4.Suspension:

Different types of suspension are designed for various operating condition, Bogie suspension; Air suspension; Mechanical suspension.
