Landing Gear
Landing Gear
  • ORENO
  • Shandong, China (Mainland)
  • 20-30days
  • 300 sets/month

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

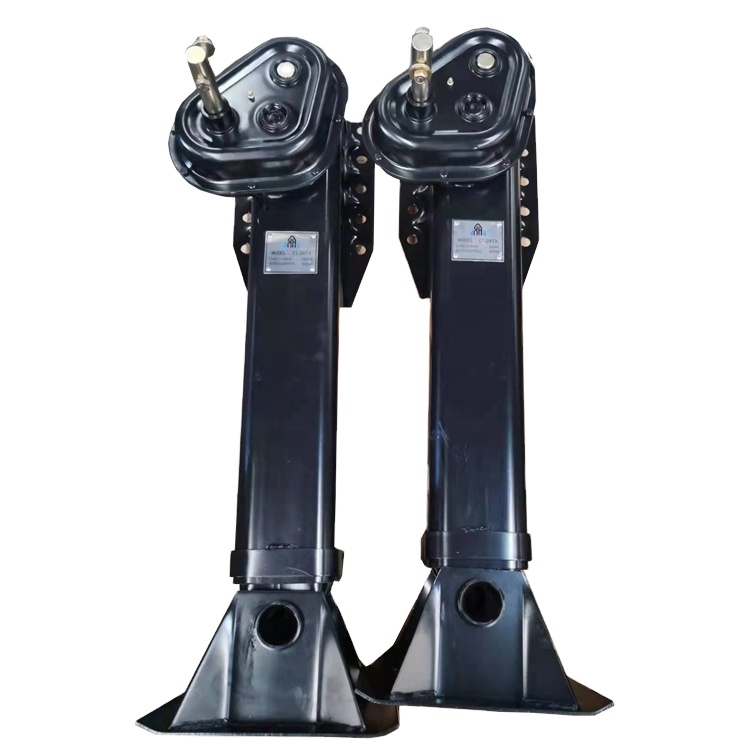

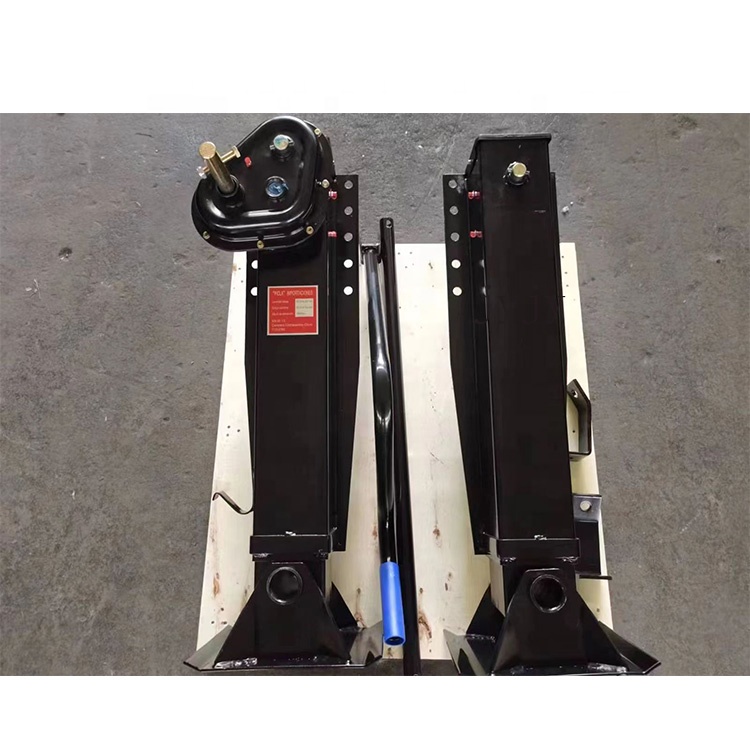

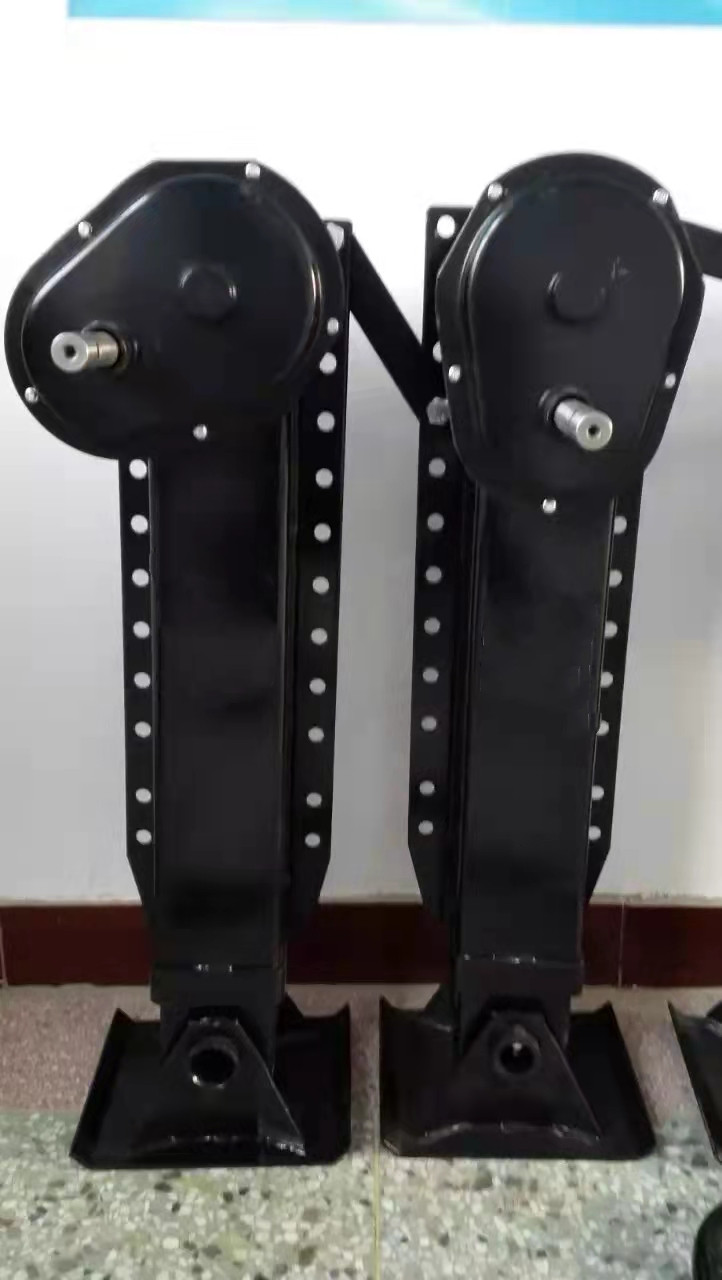

Trailer landing gear is the retractable support equipment that keeps a trailer level when it's uncoupled from the semi-tractor.

It's located at the front of the trailer and will keep trailers safe. The landing gear consists of two legs that can support the heavy weight of the trailer.

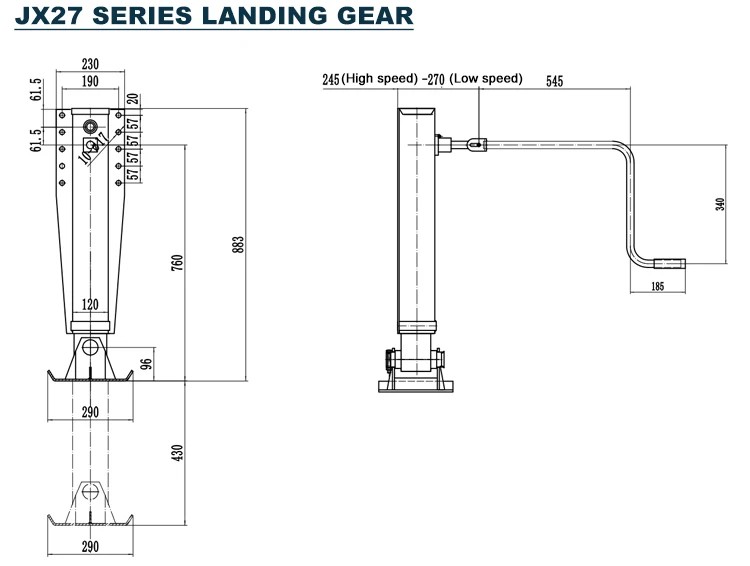

CapacityStaticWeightLow GearHigh GearOne Side   Operation Crank Force
28000Kg/Pair80000Kg/PairΩ98Kg1mm Per Turn(mm/r) of Handle11mm Per Turn(mm/r) of Handle28t-35.5Kg



X270002AA480864
JX270002GG480820
JX270002RR480847
JX270002SS480872
JX270002TT480844



One Side   Operation Landing Gear Assy
TYPESPART NOD(mm)LIFT D(mm)A(mm)HEIGHT A(mm)
JX270001AA430814
JX270001GG430770
JX270001RR430797
JX270001SS430822
JX270001TT430794

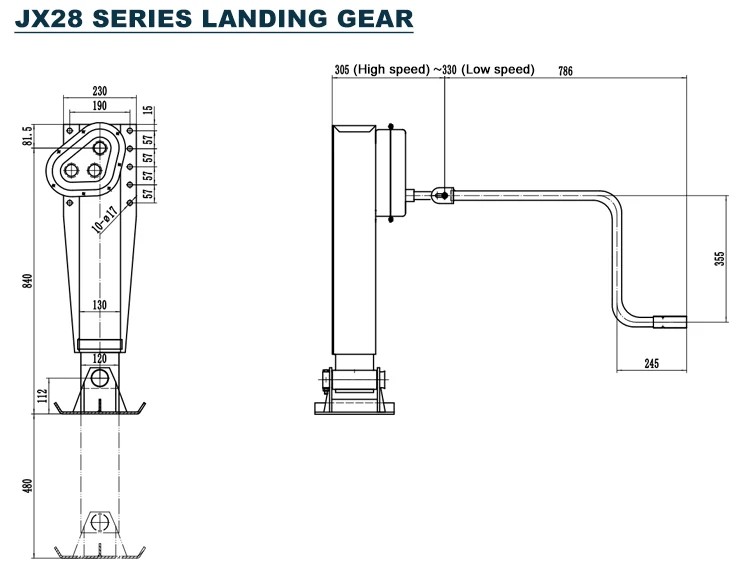

CapacityStaticWeightLow GearHigh GearOne Side   Operation Crank ForceTwo Side   Operation Crank Force
28000Kg/Pair80000Kg/PairΩ98Kg0.71mm Per Turn(mm/r) of Handle5.4mm Per Turn(mm/r) of Handle28t-35.5Kg28t-17Kg



One Side   Operation Landing Gear Assy
TYPESPART NOD(mm)LIFT D(mm)A(mm)HEIGHT A(mm)
JX280001AA430814
JX280001GG430770
JX280001RR430797
JX280001SS430822
JX280001TT430794
JX280002AA480864
JX280002GG480820
JX280002RR480847
JX280002SS480872
JX280002TT480844
