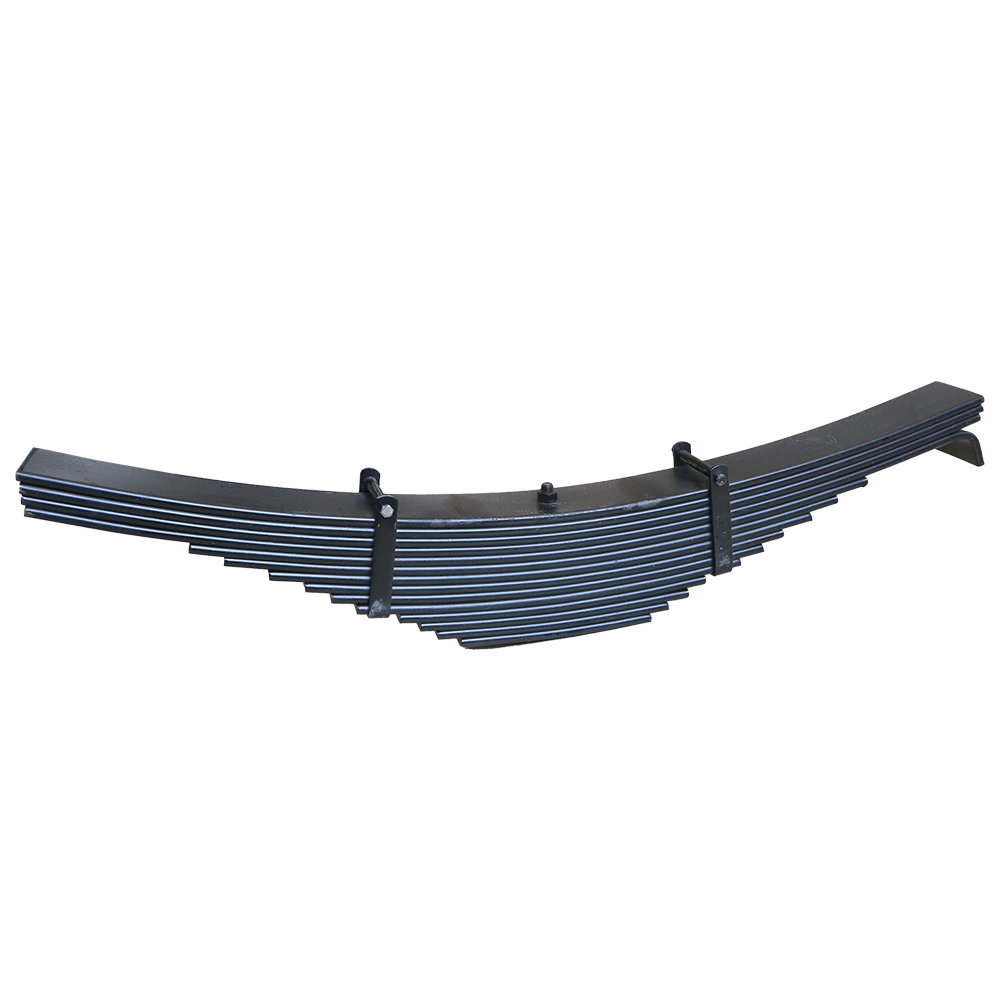

Leaf Springs

Brand : ORENO
Product origin : Shandong, China (Mainland)
Delivery time : 20-30days
Supply capacity : 300 sets/month

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

Leaf springs are usually used in wheeled vehicle suspensions.

Their function is to connect the frame and the axle in the form of suspension, and is exposed between the frame and the axle to withstand the load impact of the wheel on the frame and reduce the impact of the body.

Severe vibration keeps the vehicle running smoothly and adapts to different road conditions.

Type	Leaf Spring
Material	Steel
Place of Origin	Shandong, China
Brand Name	ORENO
Truck Model	All semi trailer
Product Name	Leaf Spring
Application	Suspension System
Use	Trailer Suspension System Parts
Width of leaf spring	90 mm/100mm (optional 120mm)
Thickness of leaf spring	13/15mm
Position	Rear Leaf Spring
Quality	High-Quality
Capacity	30KG

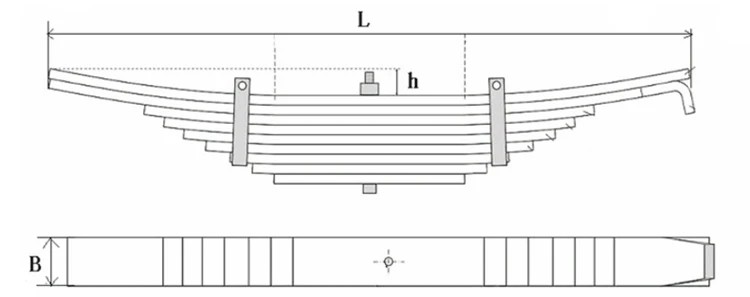

Type	Chord Length (mm)	Chord Height(mm)	Total Pieces	Thickness/pc(mm)	Width(mm)	Assembly weight(kg)
JX3-90-10	1130	80	10	13	90	71
JX13-90-13	1130	80	13	13	90	79
JX12-100-12	1135	80	12	12	100	83
JX16-75-10	1110	90	10	16	75	71
JX16-90-9	1115	80	9	16	90	79
JX12-900-12A	1200	120	12	12	100	95
JX16-90-9A	1130	70	9	10	90	82
JX13-90-9A	1120	80	9	13	90	62
