Trailer Suspension

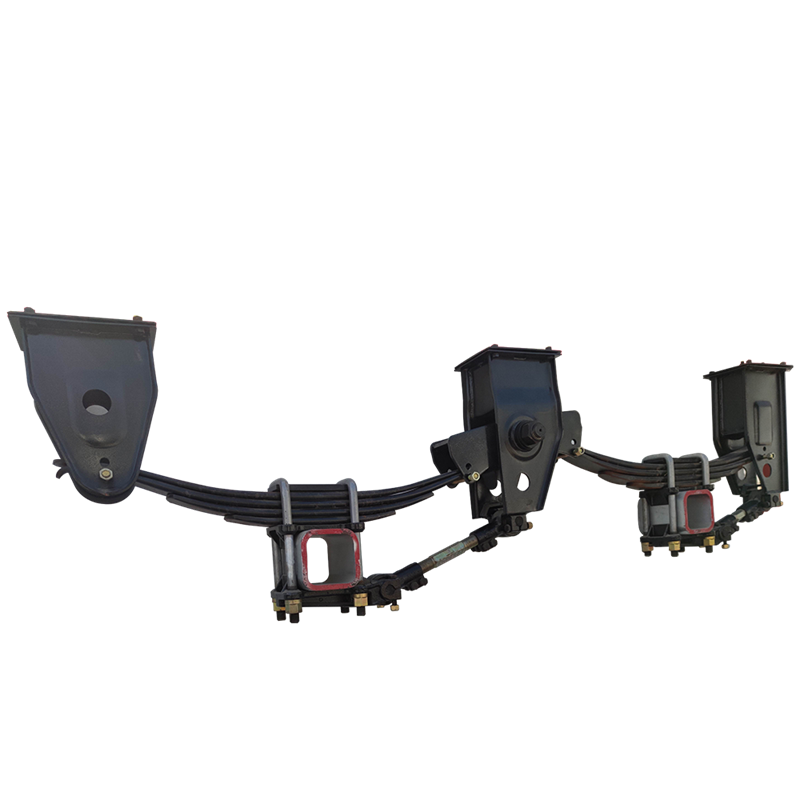

American Type Suspension

Brand : ORENO
Product origin : Shandong, China (Mainland)
Delivery time : 20-30days
Supply capacity : 300 sets/month

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

American type suspension, size, thickness and color can be customized. For more details, please kindly send us an inquiry.

Features:

1. Carry greater vertical load and better torque.

2. Easy installation, low price, long service life, low maintenance cost.

3. It is suitable for various road conditions and has many optional specifications.

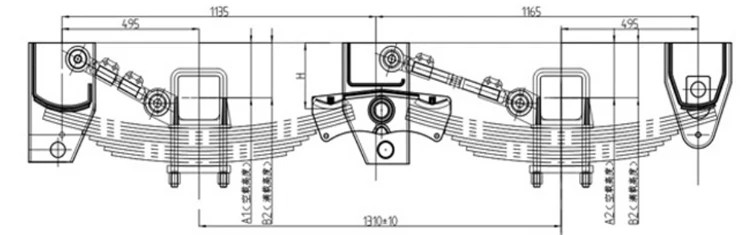

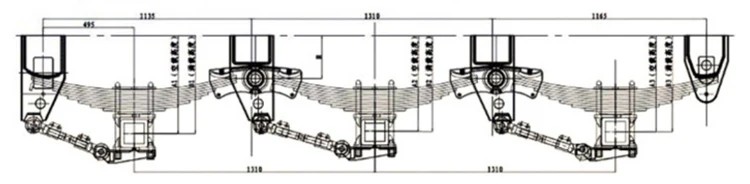

Suspension model	H (mm )	A1 (mm)	B1 (mm )	A2 (mm )	B2 (mm )	A3 (mm )	B3 (mm )	Carrying capacity
JX13AZ3-11	110	399	369	390	360	381	351	*130003**
JX13AZ3-13	130	419	389	410	380	401	371	*130003**
JX13AZ3-15	150	439	409	430	400	421	391	*130003**
JX13AZ3-18	180	469	439	460	430	451	421	*130003**
JX13AZ3-21	210	499	469	490	460	481	451	*130003**
JX13AZ3-23	230	519	489	510	480	501	471	*130003**
JX13AZ3-25	250	539	509	530	500	521	491	*130003**
JX13AZ3-27	270	559	529	550	520	541	511	*130003**
JX13AZ3-30	300	589	559	580	550	571	541	*130003**
JX13AZ3-32	320	609	579	600	570	591	561	*130003**
JX13AZ3-35	350	639	609	630	600	621	591	*130003**

Suspension model	H(mm )	A1(mm)	B1(mm )	A2(mm )	B2(mm )	Carrying capacity
JX13C2-23	230	188	158	179	149	*130002**
JX13C2-25	250	208	178	199	169	*130002**
JX13C2-30	300	508	228	249	219	*130002**
JX13C2-32	320	278	248	269	239	*130002**

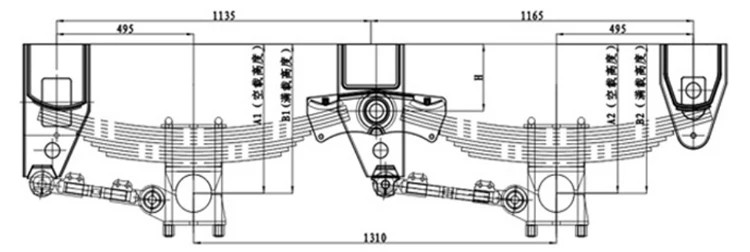

Suspension model	H(mm )	A1(mm)	B1(mm )	A2(mm )	B2(mm )	Carrying capacity
JX13B2-11	110	400	370	391	361	*130002**
JX13B2-13	130	420	390	411	381	*130002**
JX13B2-15	150	440	410	431	401	*130002**
JX13B2-18	180	470	440	461	431	*130002**
JX13B2-21	210	490	470	491	461	*130002**
JX13B2-23	230	510	490	511	481	*130002**
JX13B2-25	250	530	510	531	501	*130002**
JX13B2-27	270	560	530	551	521	*130002**
JX13B2-30	300	580	560	581	551	*130002**
JX13B2-32	320	610	580	601	571	*130002**
JX13B2-35	350	640	610	631	601	*130002**

Note:

Balance arm pin 50mm or 60mm can be chosen.

The thickness of hanger can be 6mm,8mm,10mm

Spring specification: Width 90mm,100mm,120mm;the quantity of leaves is optional
