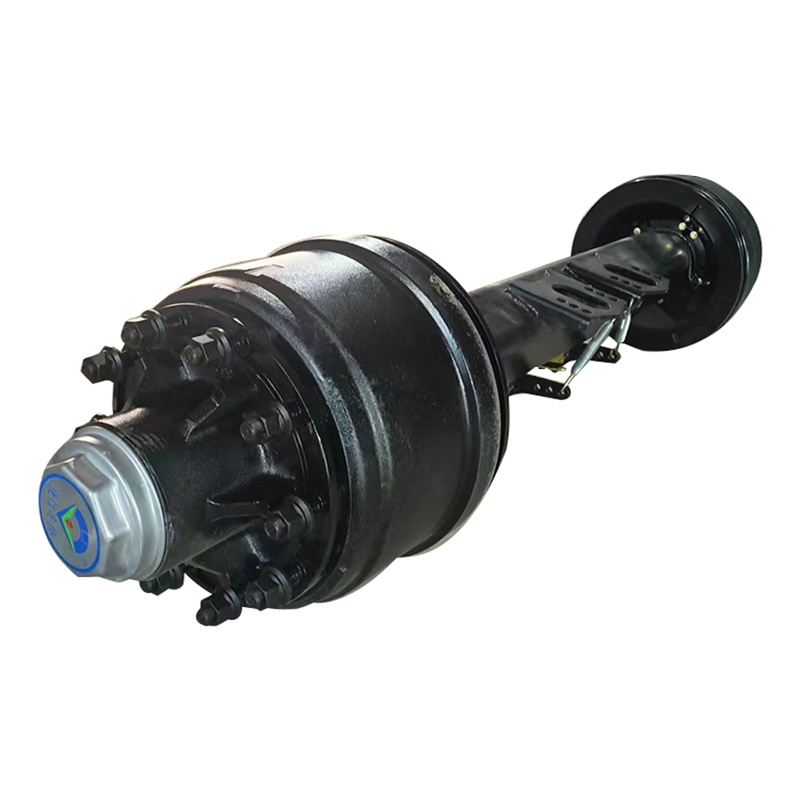

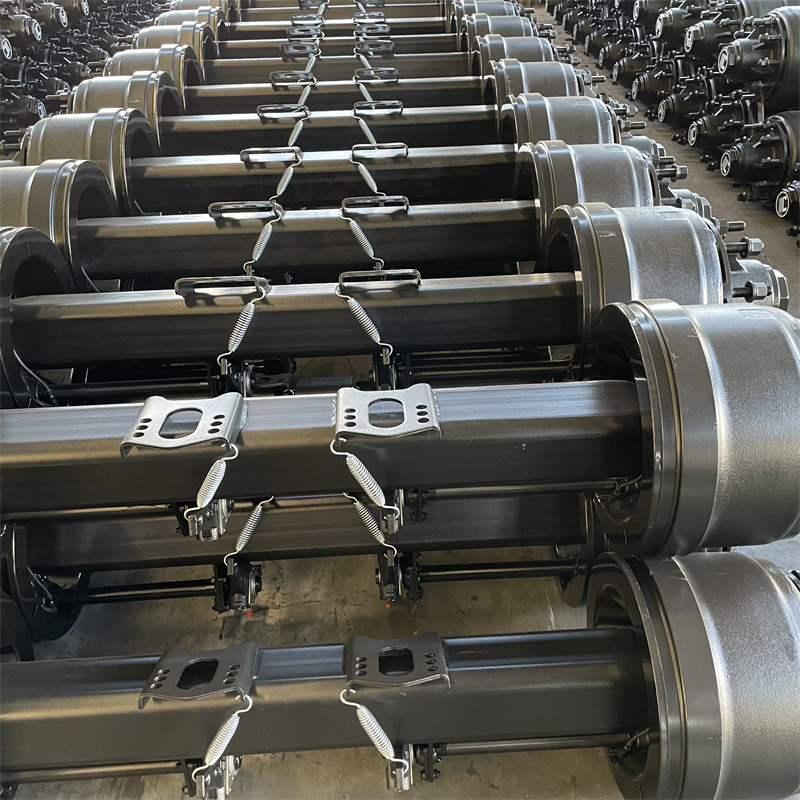

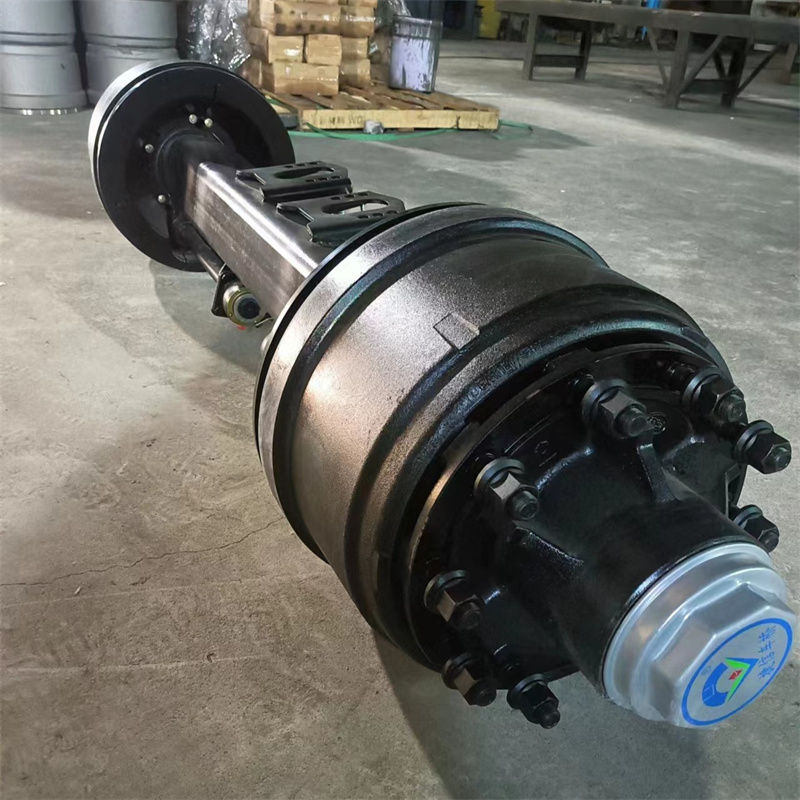

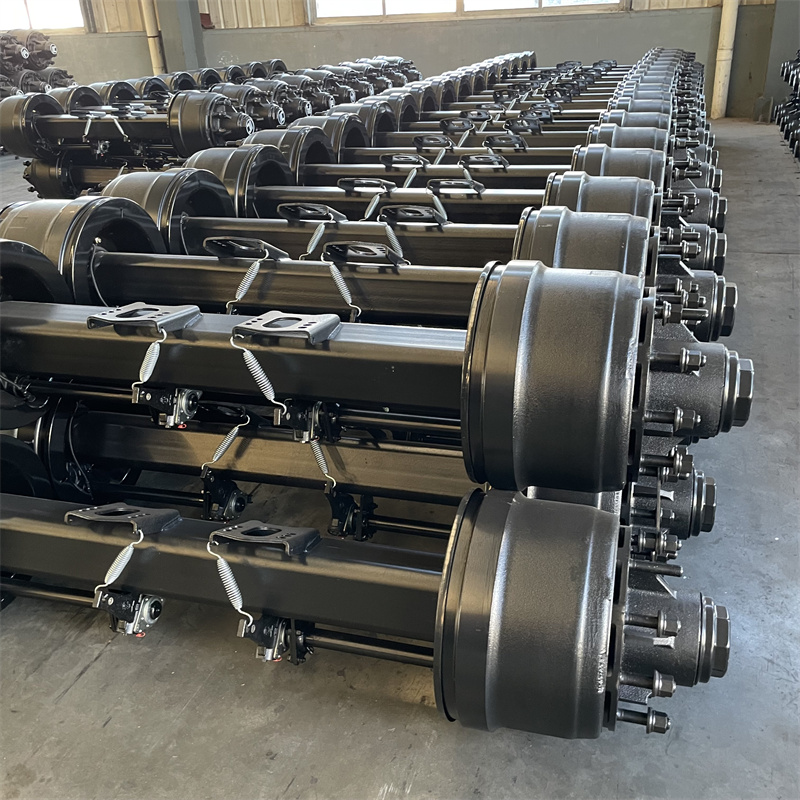

American Type Axle

Brand : ORENO
Product origin : Shandong, China (Mainland)
Delivery time : 20-30days
Supply capacity : 300 sets/month

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

American type trailer axle, max loading capacity is 8T, 13T, 14T, 15T, 16T, 20T, 25T.

Its tracking length can be customized. For more details, please send us an inquiry.

Feature:

1. One-piece shaft tube, high strength, comfortable appearance.

2. Compared with other axles of the same load, it is light in weight and low in price.

3. Using non-asbestos friction plate, more environmentally friendly.

4. Adopting international general specifications, maintenance is convenient, fast and low cost.

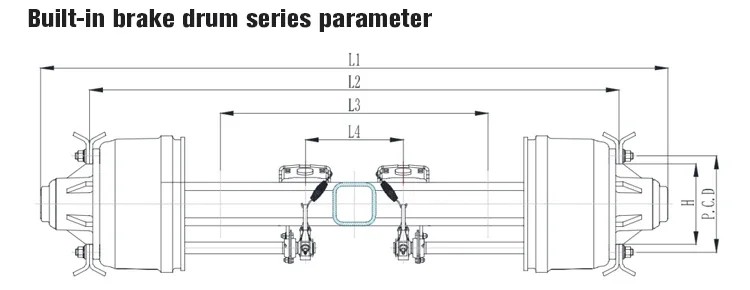

Axle Type	Max. Capacity (T)	L2 Track (mm)	Brake (mm)	Bearing	L3 (Spring Seat Installation)	Axle Beam (mm)	L4 Centre Distance Of Brake Chamber(mm)
JX08Y2C15	8	1850	*φ420150**	33215 33213	≥1080	Φ127	428
JX13Y9C10	13	1840	*φ420180**	HM518445/10	≥970	Φ127	380
JX13F1B10	13	1840	*φ420180**	HM518445/10	≥930	Φ150	380
JX14F1B11	14	1840	*φ420220**	HM518445/10	≥930	Φ150	340
JX15F6B11	15	1850	*φ420180**	HM220149/10 HM518445/10	≥940	Φ150	390
JX16F6B11	16	1850	*φ420220**	HM220149/10 HM518445/10	≥940	Φ150	350
JX20F8B12	20	1850	*φ420220**	32222 HM518445/10	≥940	Φ150	345
JX25H8A12	25	1850	*φ420220**	32222 30222	≥940	Φ150	340

Wheel Fixing			L1 Total Length(mm)	Recommended Wheel	Axle Weight (kg)
Stud	P.C.D(mm)	H(mm)	L1 Total Length(mm)	Recommended Wheel	Axle Weight (kg)
*10M221.5 ISO*	335	280.8	～2145	7.5V-20	323
*10M221.5 ISO*	335	280.8	～2180	7.5V-20	342
*10M221.5 ISO*	335	280.8	～2180	7.5V-20	340
*10M221.5 ISO*	335	280.8	～2180	7.5V-20	358
*10M221.5 ISO*	335	280.8	～2200	8.0V-20	370
*10M221.5 ISO*	335	280.8	～2200	8.0V-20	388
*10M241.5 ISO*	335	280.8	～2247	8.5V-20	430
*10M241.5 ISO*	335	280.8	～2215	8.5V-20	474
