MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

Disc brake shaft axle, max loading capacity is 12T, 13T, 14T, 16T, 18T.

Its tracking length can be customized. For more details, please send us an inquiry.

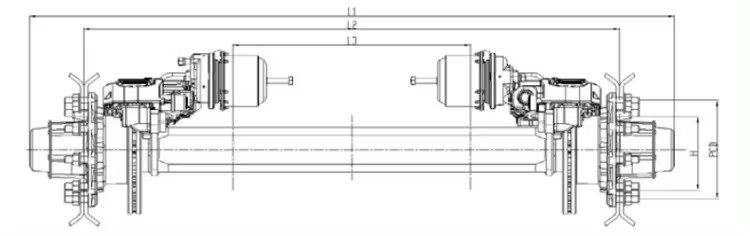

Axle TypeMax.Capacity(T)L2
  Track(mm)		Disc   Brake(mm)BearingL3
  (Spring Seat Installation)
TypeSize（mm)
JX13F1N08A131840Discφ430×45HM518445/10≥ 930
JX13F1N07A131840Discφ430×45HM518445/10≥ 930





Axle Beam
  (mm)		Wheel   FixingL1(mm)
  Total Length		Recommended
  Wheel		Weight
StudP.C.D(mm)H(mm)
□ 15010*M22*1.5   ISO335280.8218022.5352kg
□ 15010*M22*1.5 ISO285.75219.8218022.5350kg
