German Type Axle: Robust Trailer Axles with Exceptional Loading Capacity



Current Position: Home > For Trailer Manufacturers > Trailer Axles > German Type Axle

Trailer Axles

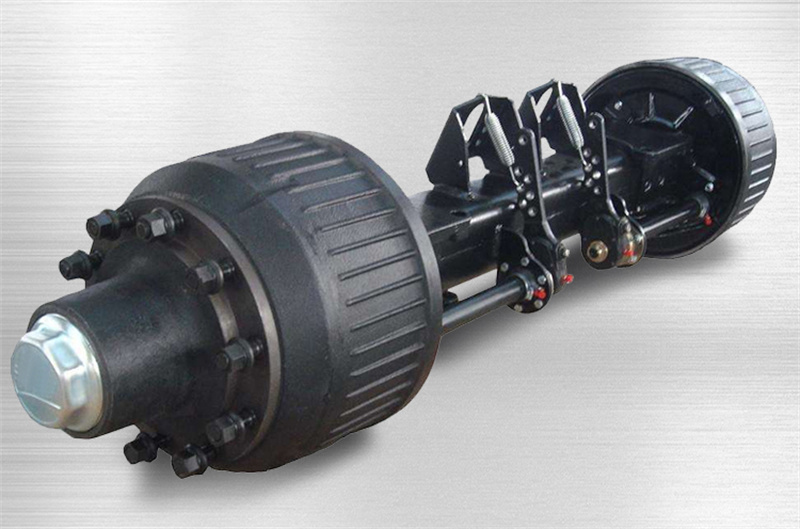

German Type Axle

Brand : ORENO
Product origin : Shandong, China (Mainland)
Delivery time : 20-30days
Supply capacity : 300 sets/month

MAIN SPECIFICATIONS

Provide the required size and specifications, we can provide customized services according to your needs. Originated from the global trailer production base, Shandong Liangshan. Preferential quotes, efficient services, reliable quality, can be stably and effectively guaranteed. No matter what type of product you need, you can contact us first.

German Type Trailer axle, max loading capacity is 12T, 13T, 14T, 16T, 18T.

Its tracking length can be customized. For more details, please send us an inquiry.

Features:

1. We produce 2 kinds of axles: One-piece axle tube and Welded tube

2. High-quality non-asbestos environmental protection friction plate, good performance, easy to replace.

3. Bearings are high-frequency hardened, with large bearing capacity, high speed and safe use.

4. The tire bolts are made of alloy steel with high strength. Equipped with two positioning sleeves.

Axle Type	Max.Capacity(T)	Track(mm)	Brake(mm)	Bearing	Spring Seat Installation	Axle tube(mm)	Centre Distance of Brake Chamber (mm)
JX12F2G70	12	1840	*Φ420200**	33118 33213	≥980	Φ150	423
JX13F2G72	13	1840	*Φ420200**	33118 33213	≥900	Φ150	360
JX14F4G73	14	1840	*Φ420200**	32219 33215	≥900	Φ150	356
JX16F6G73	16	1850	*Φ420200**	32222 32314	≥900	Φ150	360
JX18F8G74	18	1850	*Ф420220**	32222 32314	≥900	Φ150	380

Wheel Fixing			Total Length	Recommended Wheel	Weight(KG)
Stud	PCD(mm)	H(mm)	Total Length	Recommended Wheel	Weight(KG)
*10M221.5ISO*	335	280.8	~2144	7.5V-20	360
*10M221.5ISO*	335	280.8	~2144	7.5V-20	382
*10M221.5ISO*	335	280.8	~2198	8.0V-20	406
*10M221.5ISO*	335	280.8	~2265	8.5V-20	440
*10M241.5ISO*	335	280.8	~2265	8.5V-20	443

Note:

(1) Track length L2 is optional

(2) Available with ABS system

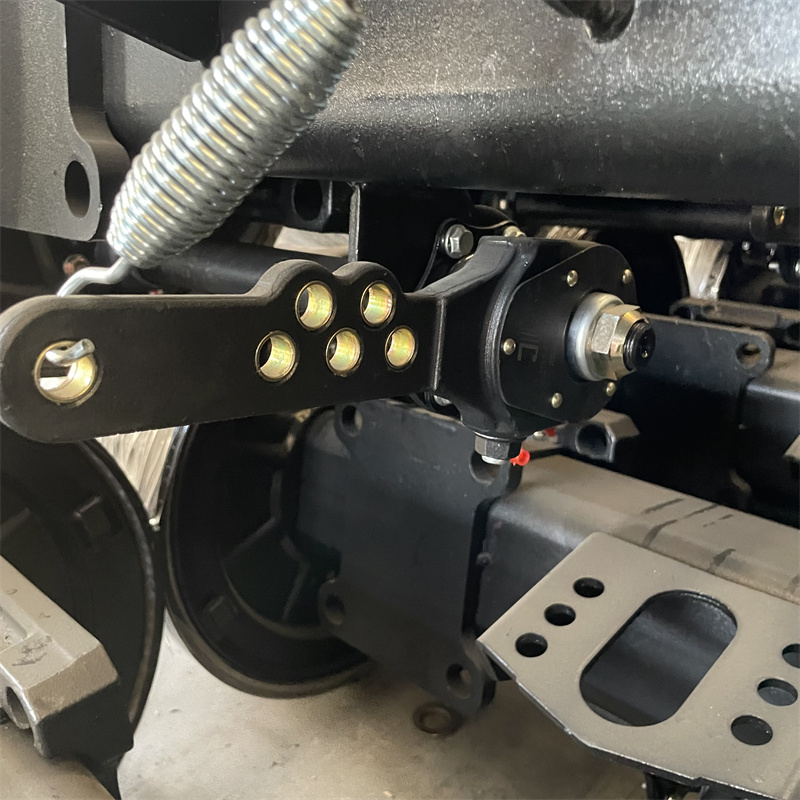

(3) Automatic slack adjuster is optional
